VMC,Stroke X[mm] 1630
MACHINE SPECIFICATIONS
(VMC)3AX

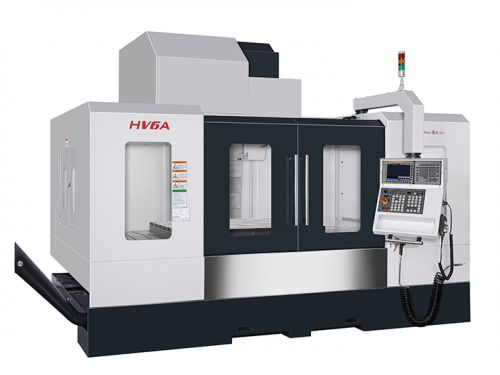

HV 6 A

Product line up - Machine specifications - HV Series - Similar products - Comparison
Characteristics
Model variations
1340
VMC(3AX) 1 Milling Spindle

CategoryItemSpecification
TravelsStroke X[mm]1630
Stroke Y[mm]850
Stroke Z[mm]815
Rapid traverse(X)[m/min]36
Rapid traverse(Y)[m/min]36
Rapid traverse(Z)[m/min]30
TableWorkpiece allowable Load[kg]2760
Table Size[mm]1750×800

Milling spindle 1(H1)

Spindle name
Taper7:24 taper No. 50
Rotational speed[rpm]80006000
Power[kW]26.25!31.5
Torque[Nm]
Transmission

Tool Magazine 1

Tool holder taper7:24 taper No. 50
No. of tool storage[ea]28
Tool diameter[mm]100
Tool length[mm]350
Tool weight[kg]15
Tool change time(TTT)[s]3.5
Tool change time(CTC)[s]
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)


Photo gallery

MACHINE SPECIFICATIONS
Not responsible for misprints or data errors. Actual product appearance may differ.
